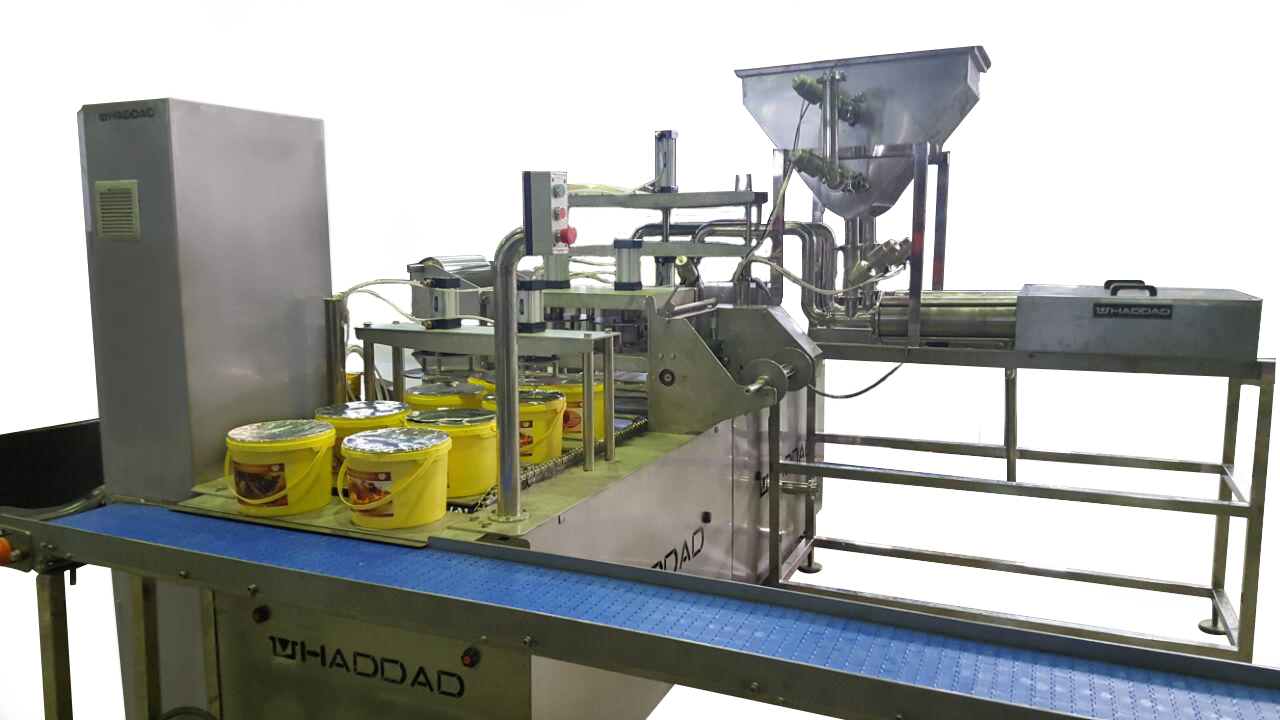

Linear Bucket Filling & Roll-Seal Machine — 2-Line, up to 6kg
The BPF-2L-6KG is a 2-line automatic linear filling and roll-seal (foil sealing) machine engineered for pots and buckets from 500g up to 6kg of viscous or non-viscous liquid, delivering 2,000 units/hour with AC servo piston filling, automatic CIP and PLC-HMI control. Manufactured by Haddad Fillpack, engineering dairy and food packaging lines since 1987.

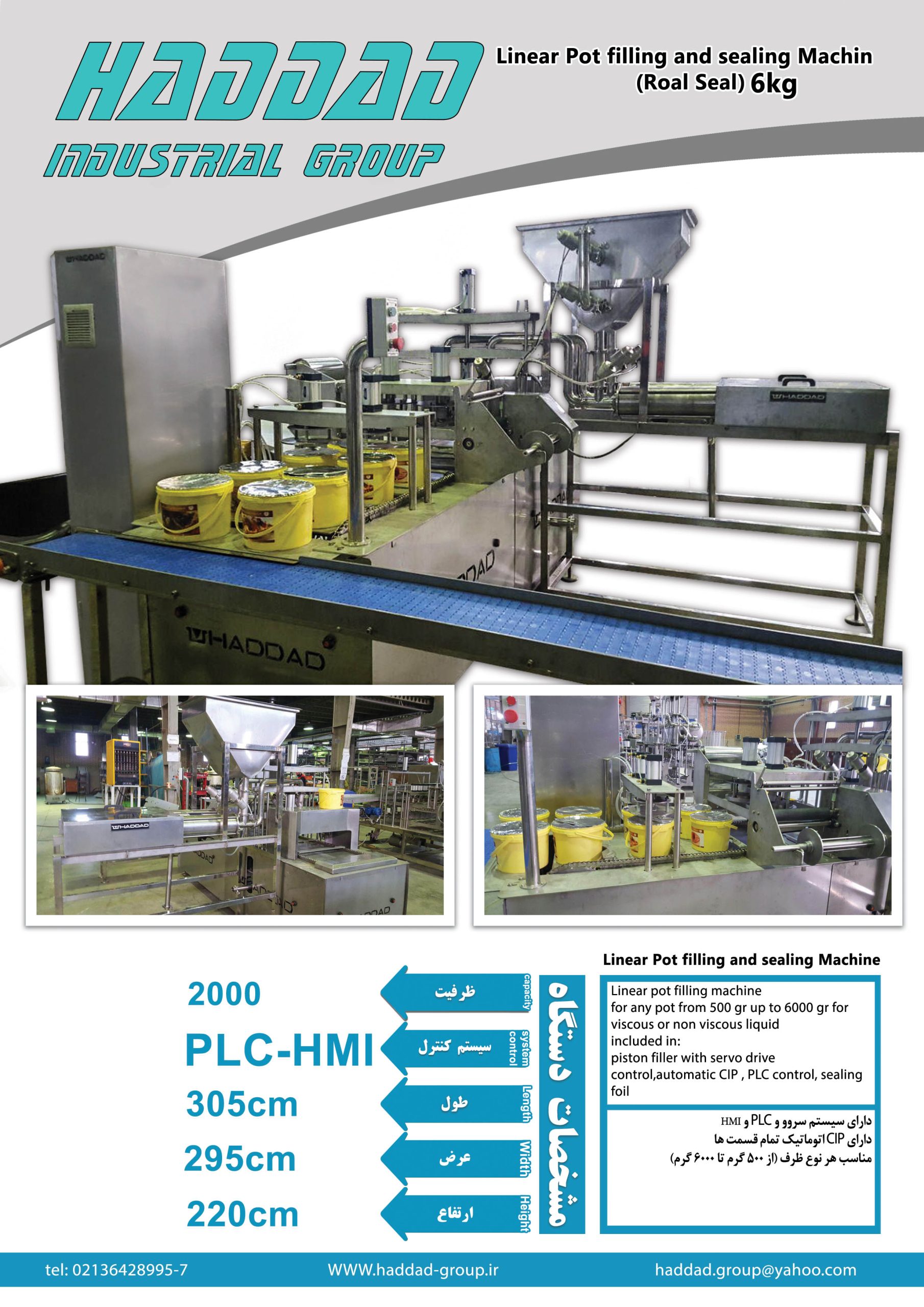

View the Catalog Sheet
Full specifications, dimensions and performance data for the BPF-2L-6KG Bucket Filling Machine.
The BPF-2L-6KG is part of Haddad Fillpack's Bucket & Pail Filling Machine family, purpose-built for producers who need accurate, repeatable filling of viscous or non-viscous liquids into pots and buckets at industrial volumes. With 2 filling lines and a rated output of 2,000 units/hour, this model is suited to production lines that need a reliable, low-maintenance machine rather than a fully bespoke line.
Filling is handled by AC servo piston dosing with PLC-HMI control, for pots or buckets from 500g up to 6kg, and an overall machine footprint of 305 x 295 x 220 cm. As with every Haddad Fillpack machine, the BPF-2L-6KG is backed by our engineering team for installation guidance, spare parts and after-sales support.
Key Features
AC Servo Piston Filling System
Precise, repeatable dosing on both lines using servo-driven piston filling, minimizing product giveaway across the 500g–6kg fill range.
PLC-HMI Control Console
Operators adjust fill volume, speed and cycle timing from a touchscreen HMI, with recipes tuned to different pot or bucket sizes.
Automatic CIP on All Parts
Automatic clean-in-place washing across every product-contact part keeps changeover and sanitation time low between batches.
Roll-Seal Foil Sealing
An integrated roll-seal station heat-seals foil lids directly on the line, right after filling, for a tamper-evident finish.
2-Line Output at 2,000 Units/Hour
Rated for 2,000 units/hour, the BPF-2L-6KG is designed for continuous production runs with minimal downtime between batches.
| Specification | Value |
|---|---|
| Capacity | 2,000 units/hour |
| Number of Lines | 2 |
| Fill Weight Range | 500g – 6,000g (0.5–6kg) |
| Filling Type | AC Servo Piston |
| Control System | PLC-HMI |
| CIP (Cleaning-in-Place) | Automatic, all parts |
| Sealing Method | Roll-Seal (Foil) |
| Machine Dimensions (L x W x H) | 305 x 295 x 220 cm |
| Suitable Products | Lubricants, Industrial Oil, Paint, Chemicals, Edible Oil, Honey, Dairy |
| Product Code | BPF-2L-6KG |

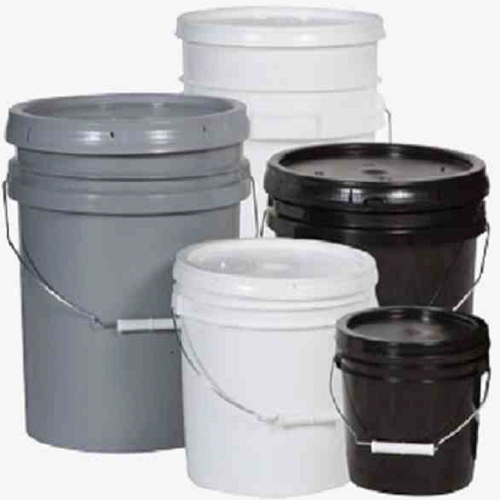

The BPF-2L-6KG is built for viscous and non-viscous liquids in pots or buckets from 500g up to 6kg, and is commonly deployed on industrial and food packaging lines that need consistent, hygienic filling and sealing.
Products It Can Fill
Common Use Cases
Ideal Customer
Producers who need a dependable 2-line bucket/pot filler for viscous or non-viscous liquids from 500g to 6kg at a throughput of 2,000 units/hour, and who value a machine that is straightforward to operate, clean and maintain.
Producers choose the BPF-2L-6KG for the combination of throughput, hygienic design and long-term reliability that Haddad Fillpack has built into the Bucket & Pail Filling Machine range since 1987.
Proven, Field-Tested Design
The BPF-2L-6KG is built on Haddad Fillpack's established Bucket & Pail Filling (BPF) platform, refined across dozens of installations.
Lower Cost of Ownership
Automatic CIP and a 2-line layout reduce labor and downtime per unit produced compared to manual or semi-automatic filling.
Local Engineering & After-Sales Support
As an Iranian manufacturer since 1987, Haddad Fillpack provides direct engineering support, spare parts and service without the lead times of importing.
What is the output capacity of the BPF-2L-6KG?
The BPF-2L-6KG is rated at 2,000 units/hour across its 2 filling lines, using AC servo piston dosing.
What products can the BPF-2L-6KG fill?
The BPF-2L-6KG is built for viscous and non-viscous liquids in pots or buckets from 500g up to 6kg, including lubricants, industrial oil, paint, chemicals, edible oil, honey and dairy products.
Does Haddad Fillpack provide installation and after-sales support?
Yes. Haddad Fillpack has manufactured filling and packaging machinery since 1987 and provides installation guidance, spare parts and after-sales service for every machine we sell, including the BPF-2L-6KG.
